8. Aircraft Library

To add an aircraft to the Aircraft Library you will first need to set up and export an aircraft profile from OzRunways. Use the share button to export your completed aircraft profile as shown in the image below.

_images/fig_aircraft_export_from_ozrunways.jpeg


Share the file to the device on which you are using the Dashboard. The file will end in “.ozacft”.

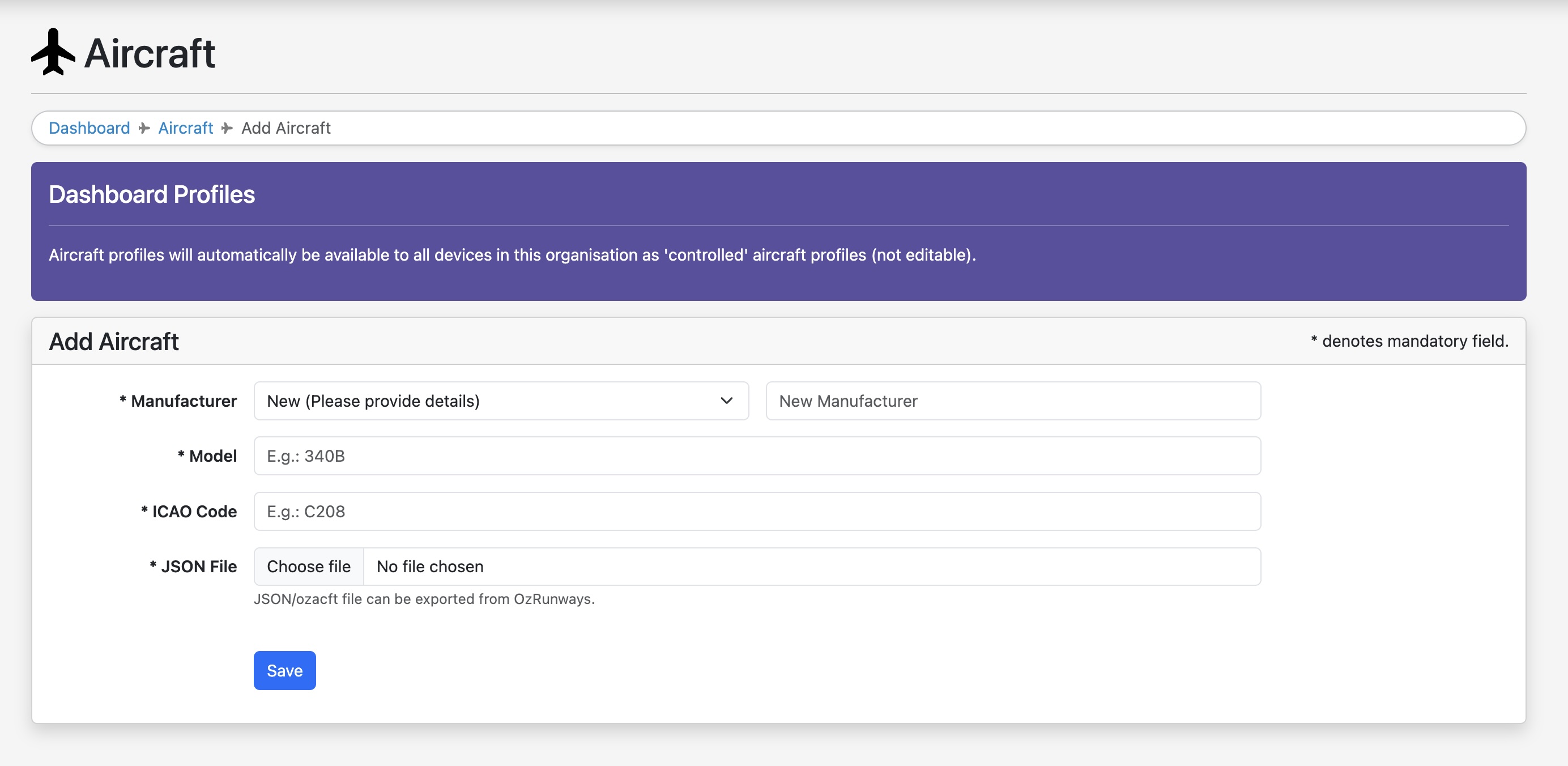

On the Dashboard click Add Aircraft to import the aircraft profile to the dashboard. The following screen will result.

_images/fig_aircraft_library_add_aircraft3.jpg


We recommend using your organisation name in place of the manufacturer name as this will group all your company aircraft profiles together when downloading them in OzRunways. The JSON file is the .ozacft file exported from OzRunways.

8.1. Automatic Syncing

The aircraft profile will automatically sync to all EFBs where it will appear in the aircraft list in OzRunways → Settings → Aircraft. OzRunways checks for new synced aircraft on app launch, which means you may need to close and reopen the app before a newly synced aircraft appears in the list. Dashboard synced aircraft profiles are indicated in OzRunways by an icon as shown in Image 8.1.

_images/fig_aircraft_dashboard_profiles.jpeg

Image 8.1 Dashboard synced aircraft profiles in OzRunways


When a synced aircraft is updated OzRunways will automatically download the new profile on next app launch, and the version number displayed underneath the aircraft in OzRunways will increment accordingly.

8.2. Upload Aircraft Profile to Dashboard

This feature is available in our new Dashboard & Dashboard Compliance, contact support@ozrunways.com to find out more.

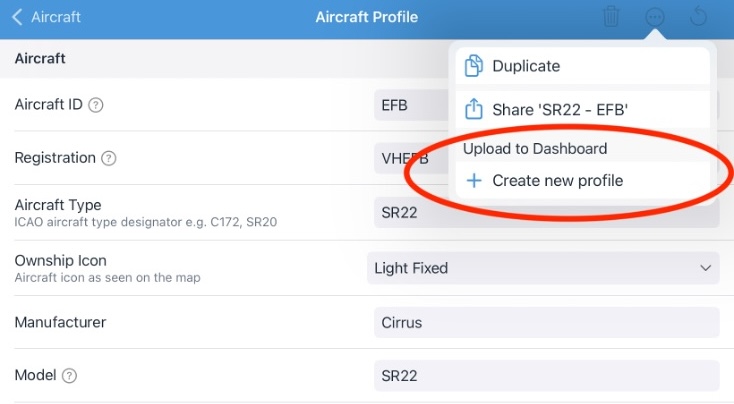

Once you have imported or created your aircraft profile, select “+ Create new profile” as shown:

_images/fig_push_aircraft_profile_to_dashboard1.jpeg

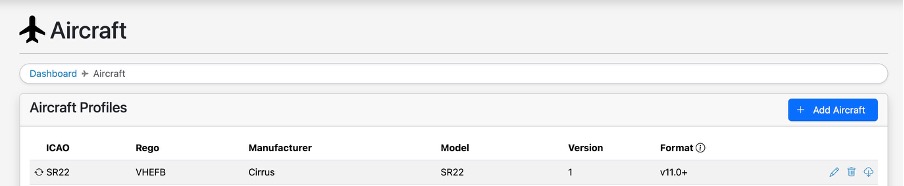

This will send the profile to the Aircraft Library as a Dashboard Profile.

_images/fig_push_aircraft_profile_to_dashboard2.jpg

You will notice in the Aircraft menu in OzRunways that the profile is now purple in colour, indicating it has been pushed to the Aircraft Library.

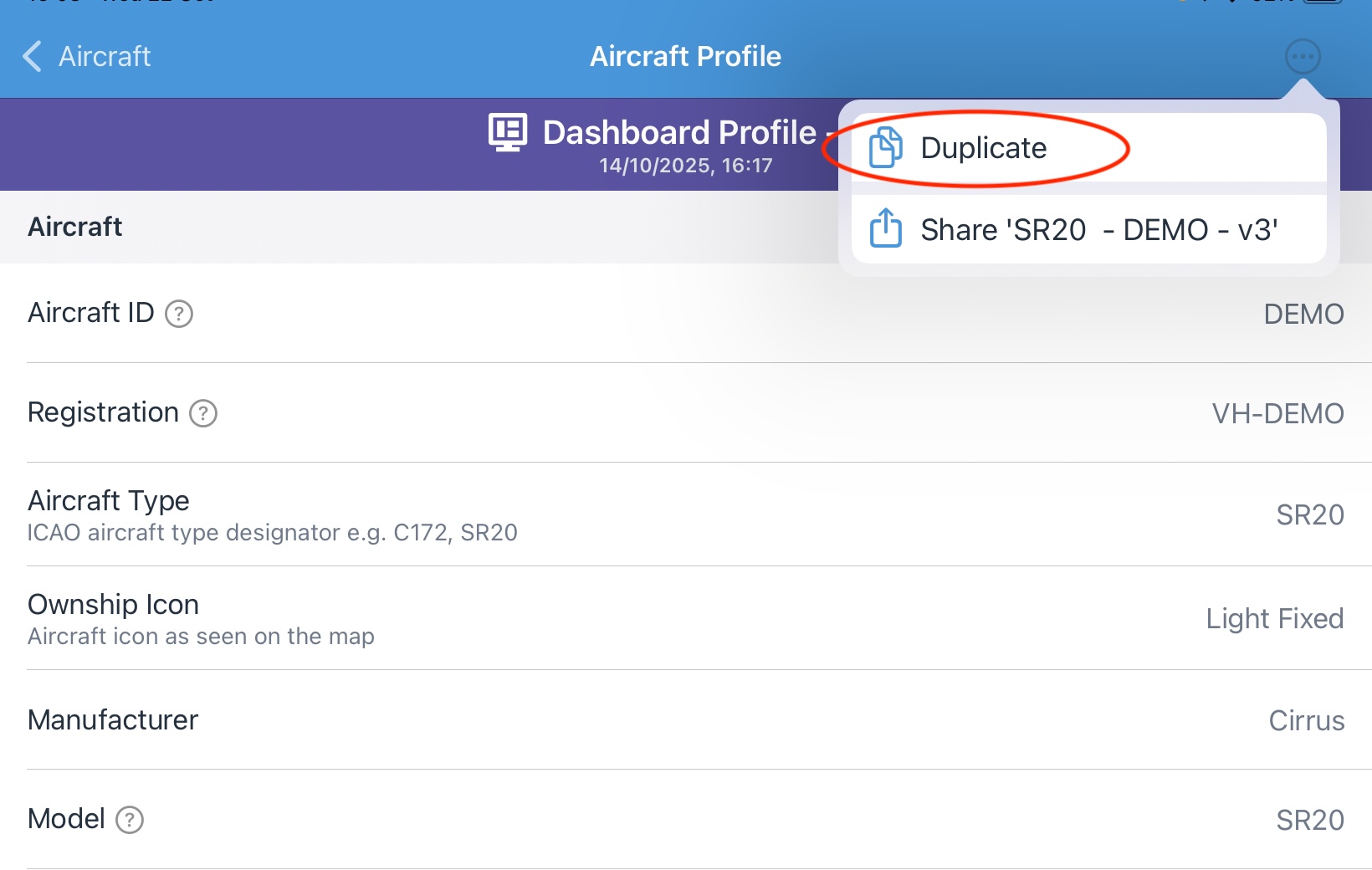

To edit an existing Dashboard profile, Settings→Aircraft then select the aircraft profile to be edited. Select “Duplicate” in the dropdown menu:

_images/fig_push_aircraft_profiles_to_dashboard3.jpg

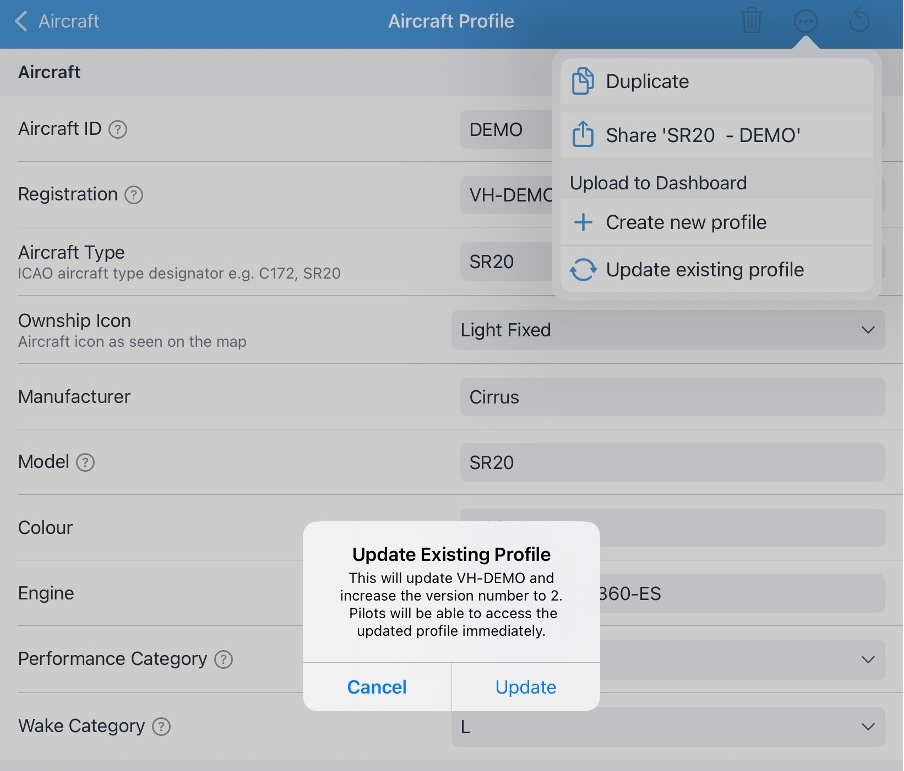

Make your amendments, then select “Update existing profile” in the dropdown menu

_images/fig_push_aircraft_profile_to_dashboard4.jpg

The updated profile will be immediately available across all company devices.
